FPL6220 - Insulated Man Cave Cube 328x428

FPL6220 - Insulated Man Cave Cube 328x428

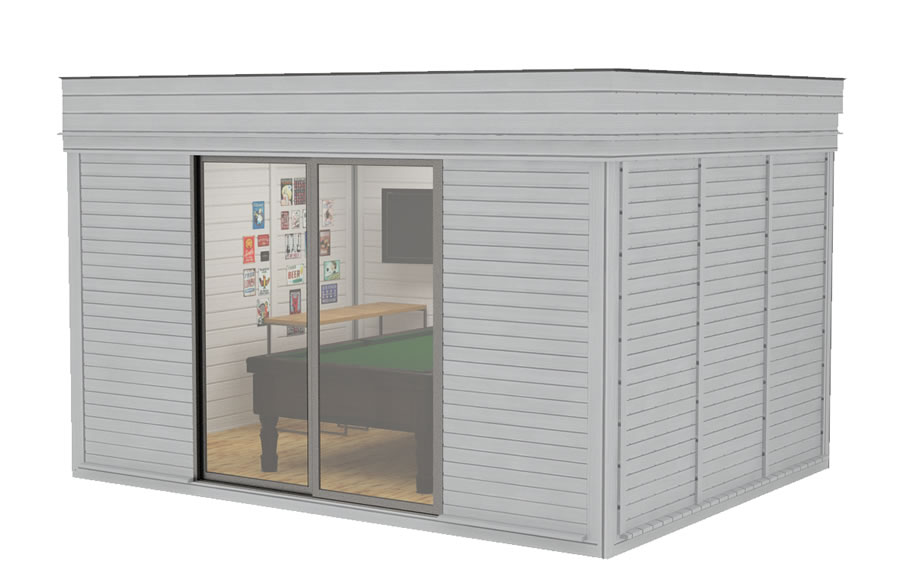

3.28m x 4.28m Insulated Man Cave Cube


The 3.28m x 4.28m Insulated Man Cave Cube has a spruce frame with insulated floor and roof panels and 4 columns. The frame is made from glue laminated spruce beams. Frame consists of bottom frame (100 x 140 mm), columns (140 x 140mm), top frame (140 x 240mm) and withstands 442 kg/m2 roof load.

Aluminium 2-rails sliding door Reynaers system with locks - sliding in both directions.

Insulated full panel wall: Panel size is 1000 x 2200mm; Wall frame 45 x 45mm, insulation - 50 mm (stone wool), panel covered with inside 96 x 12mm and outside 145 x 18mm spruce cladding boards. Thickness of the finished wall segment is 75mm.

Decorative sunscreen double-glazed wall: Wall panel dimensions are (1000 x 2200 mm); Wall frame 75 x 45mm, horizontal sunscreen wall consists of 18 x 50mm boards with double-glazed units.

The walls, floor and roof of the Man Cave Cubes are all insulated to lower energy costs. Stone wool insulation provides fire resilience and thermal and acoustic properties. All of the screws, nails and fixings are included.



  • Total height: 2780mm
  • Wall height: 2200mm
  • Floor thickness: 128mm
  • Roof thickness: 145mm
  • Exterior Cladding: 18mm
  • Interior Cladding: 12mm
  • Wall thickness: 75mm
  • Insulation:  50mm stone wool
  • External dimension: 3286 x 4286mm
  • Door size: 2000 x 2200mm
  • Window size: 1000 x 2200 mm
  • Flooring:146 x 28mm floor boards

Code: ICMC3X4

These are modular cabins which can be modified within certain criteria, please enquire for more details.

At Forest Products we pride ourselves in dealing only with quality goods. We would never sell a log cabin or summerhouse that we wouldn't be happy with in our garden. The log cabins and Camping Concepts are manufactured using some of the highest quality timber available anywhere in the world. This timber is then milled by some of the most experienced people in the industry into the log cabins and summerhouses of your dreams. The windows and doors are all fully double glazed and all the windows come with a tilt/turn action when the wall thickness is 44mm and above. These same mills build anything from a small 2m x 2m interlocking shed to a fullblown multi-bedroom log home. All the timber is from Government Control forestry, which all have FSC accreditation.
